ASSEMBLY INSTRUCTIONS FOR EXTENDABLE DOUBLE CURTAIN ROD WINDOW SIZES- 48-88 INCH

Instructions

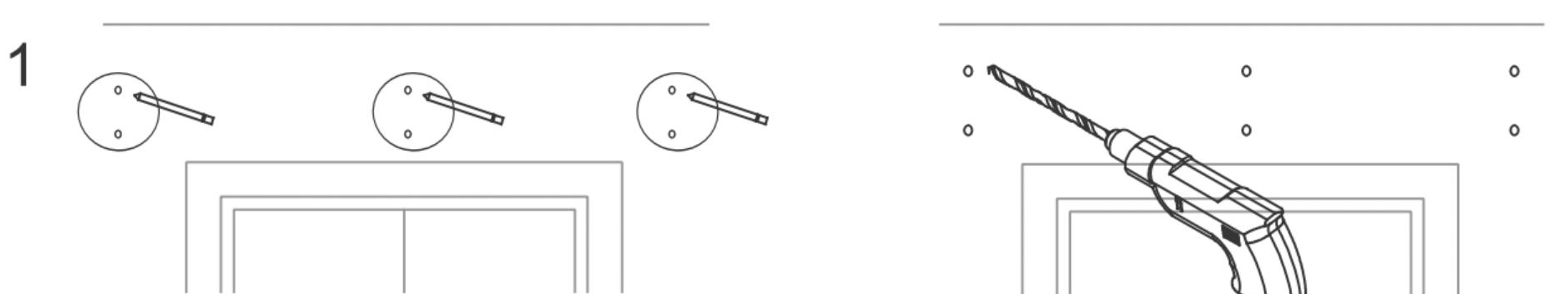

1. Position mounting bracket above the window at the desired height and appropriate location for rod size. All rod sizes require a bracket at each end. Rods longer than 60 inch require an additional bracket at the center. Mark the mounting bracket (B) screw locations with pencil and drill with the help of a drilling machine .

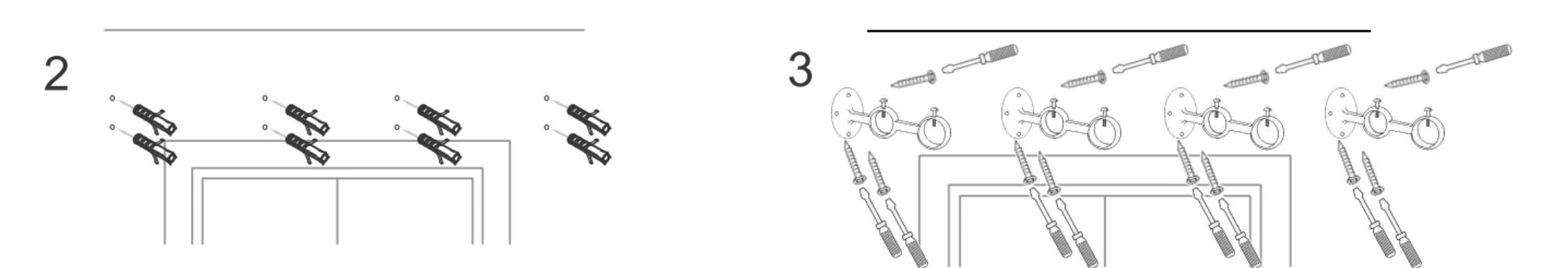

2. Insert plastic wall plugs at pencil-marked locations unless
brackets are to be screwed to a solid wood surface.

3. Fix the brackets to wall at the marked location using the screws
provided.

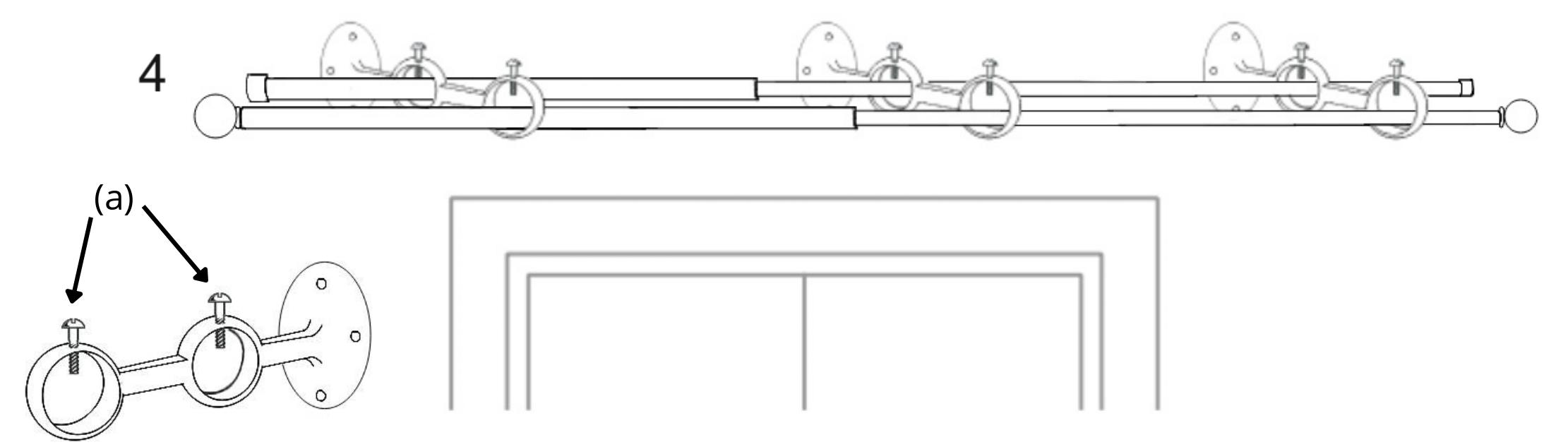

4. Remove the End caps from the sides of the 16mm rod and then slide in the 16mm rod extending it to a length as per your choice with sheer curtains in the back hole and adjust the length according to your window. Tighten the screw on the bracket (a) to secure the rod in place. Next, slide in the front rod with curtains extending it in the same way, tighten the screw on the bracket (a) to secure the rod in place.

5. Screw the finials and end caps in the respective rods (see fig. #4). You are now all set.

ASSEMBLY INSTRUCTIONS FOR EXTENDABLE DOUBLE CURTAIN ROD WINDOW SIZES- 84-144 INCH

Instructions

1. Position mounting bracket [C] above the window at the desired height and appropriate location for rod size. All rod sizes require a bracket at each end. Rods longer than 60 inch require an additional bracket at the center. Mark the mounting bracket [C] screw locations with pencil and drill with the help of a drilling machine .

2. Insert plastic wall plugs at pencil-marked locations
unless brackets are to be screwed to a solid wood
surface.

3. Fix the brackets [C] to wall at the marked location
using the screws provided.

4. Remove the end caps from the Rod Set [B] by unscrewing (a).

5. Connect the three-piece rod together for both the rods. The inner rods will be in the middle

6. Now slide in the Rod set [F] extending it to a length as per your choice with sheer curtains in the back hole and adjust the length according to your window. Tighten the screw on the bracket (b) to secure the rod in place. Next, slide in the Rod set [G] with curtains extending it in the same way, tighten the screw on the bracket (b) to secure the rod in place.

7. Screw back the extra end caps [D] in the hardware provided & [E] (see fig. 4) (the bigger end caps) onto the Rod set [F]. Screw both the finials onto the Rod set [G] .You are now all set.
